Concrete Floor Grinders

2 models available: TCG @{72507892a37eecb6eebfbab599ddcf341cf9806415dad49c731058e2f9cc3801}) and TCG 500

The TCG250 is a heavy duty single head grinder for levelling and preparation of small to medium areas.

The TCG500 is the workhorse of choice for contractors looking for a reliable, productive floor grinder.

  • Levelling and smoothing of concrete
  • Removal of coatings and adhesives
  • Preparation for new coatings
  • Repairing rain damaged concrete
  • Polishing of concrete and other materials

Description

Key Features

Grinding of concrete surfaces. (Shopping malls, hospitals…)
Removal of surface coatings adhesives, road markings and contaminates. (Factory floors, car parks…)
Scarifying to remove oil/dirt build up. (Airports, car parks…)
Ice removal from cold store floors. (Food processing plants…)
Grinding Terrazzo floor tiles.
Grinding resinuous based coatings.
Smoothing and levelling concrete before applying a new coating.
Polishing.

CATEGORY DETAIL
Weight 97 kg
Length 1025 mm
Width 620 mm
Height 1035 mm
Cutting Width 250 mm
Power 3 HP
Disc rpm 1385

Download

Download the Technical Specification

TCG 250

The TCG250 is a heavy duty single head grinder for levelling and preparation of small to medium areas.

The flexible grinding head ensures maximum contact and usage of the diamond while working over rough surfaces. Robust design and optimized grinding pressure while maintaining overall compactness together with maneuverability make the TCG250 the choice for a wide range of jobs. It is the ideal partner for specialist contractors.

A flexible range of tooling options complete the perfect package providing a versatile solution to many grinding applications.

  • 250mm grinding diameter
  • Optimized grinding pressure and speed for high productivity
  • Angled dust port for virtually dust free working
  • Available with Trelawny quick release tooling (QR) for a wide range of applications
  • Optional weight for more aggressive production
  • Heavy weight construction but compact for excellent performance with easy maneuverability

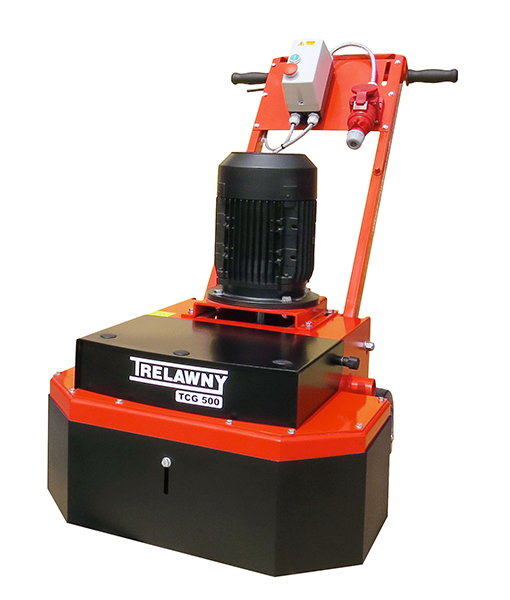

TCG 500

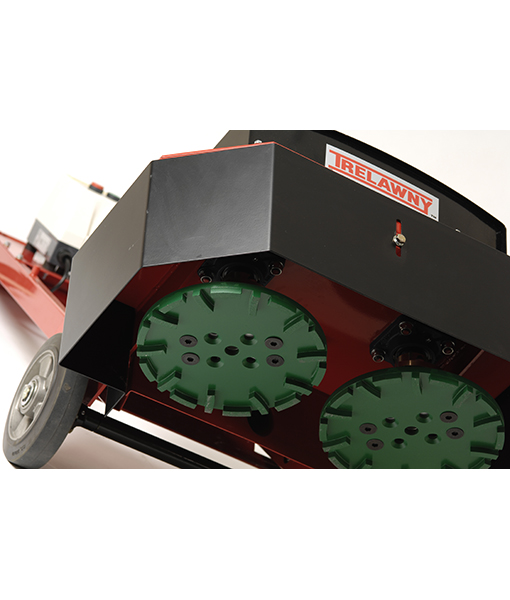

The TCG500 is the workhorse of choice for contractors looking for a reliable, productive floor grinder. Dual counter rotating grinding heads ensure balanced operation while the flexible disc coupling ensures maximum contact and usage of the diamond while working over rough surfaces.

The additional weight system and flexible tooling allow fine adjustment of performance and make the TCG500 a versatile package for a wide range of applications.

  • 500mm grinding width
  • Duel dust ports for virtually dust free working
  • Available with Trelawny Quick Release tooling (QR) for a wide range of applications
  • Additional weights for increased production
  • Trelawny Vibro-Lo™ vibration reduction for operator comfort and safety
  • Available in a wide range of electric and petrol options

DOWNLOADS

Download TCG 250 Data Sheet

Download TCG 500 Data Sheet
